| 70 | 271565 | BOLT |
| 71 | 15301628 | STACKING SCREW |
| 72 | 15253060 | ELBOW |
| 73 | 15255611 | REDUCER |
| 74 | 15244893 | NUT-STACKING |
| 75 | 15305414 | HOSE ASSY |
| 76 | 15255890 | ELBOW |
| 77 | 15001403 | CLAMP |
| 78 | 15244830 | ELBOW |
| 79 | 106263 | WASHER |
| 80 | 15301627 | BENT-PLATE |
| PUMP-STEERING | ||
| ITEM | PART NO. | DESCRIPTION |
| 1 | 15256582 | STEERING PUMP |
| 2 | 15270819 | PLATE-VALVE |
| 3 | 15270818 | KIT-ROTATING GROUP |
| 4 | 15270821 | SHAFT |
| PUMP AND ACCUMULATOR MOUNTING | ||
| ITEM | PART NO. | DESCRIPTION |
| 1 | 9016036 | STRAP |
| 2 | 9417713 | NUT |
| 3 | 106263 | WASHER |
| 4 | 15230188 | GUARD |
| 5 | 179881 | BOLT |
| 6 | 103329 | LOCKWASHER |
| 7 | 9156021 | GASKET |
| 8 | 9179585 | STUD |
| 9 | 103028 | NUT |
| 10 | 9267949 | WASHER-HARDENED |
| 11 | 179883 | BOLT |
| 12 | 15251035 | COVER PLUG-ACCUM |
| 13 | 179885 | BOLT |
| 14 | 15004932 | ADAPTOR-PUMP MTG |
| 15 | 9206866 | GASKET |
| 16 | 15244763 | COUPLING-SPLIEND |
| 17 | 9172766 | O RING |
| ACCUMULATOR-STEERING | ||
| ITEM | PART NO. | DESCRIPTION |
| 1 | 6525035 | VALVE ASSY-RECHARGE |
| 2 | 274253 | O RING |
| 3 | 223453 | BOLT |
| 4 | 9036867 | RING-BACKUP |
| 5 | 9169669 | O RING |
| 6 | 9018820 | SEAL |
| 7 | 9018813 | PISTON |
| 8 | 9018819 | RING-WEAR |
| STEERING VALVE | ||
| ITEM | PART NO. | DESCRIPTION |
| 1 | 457151 | BEARING |
| RELIEF VALVE-STEERING | ||
| ITEM | PART NO. | DESCRIPTION |
| 1 | 15265078 | CARTRIDGE |
| STEERING CYLINDER | ||
| ITEM | PART NO. | DESCRIPTION |
| 1 | 9014528 | CYLINDER-STEERING |
| 2 | 9014535 | TUBE |
| 3 | 9167506 | BEARING-SPHERICAL |
| 4 | 9425517 | RING-SNAP |
| 5 | 9014542 | ROD |
| 6 | 9256601 | WIPER |
| 7 | 9014532 | SEAL AND RING-BACKUP |
| 8 | 271565 | BOLT |
| 9 | 9256136 | RING-BACKUP |
| 10 | 9141862 | O RING |
| 11 | 9256074 | RING-PISTON |
| 12 | 274191 | LOCKNUT |
| 13 | 179883 | BOLT |
| 14 | 103329 | LOCKWASHER |
| 15 | 9261064 | STUD-BALL |
| 16 | 9018463 | RING-RETAINER |
| 17 | 9261065 | BUSHING |
| FILTER-STEERING | ||
| ITEM | PART NO. | DESCRIPTION |
| 1 | 15266831 | ELEMENT |
| STEERING LINKAGE | ||
| ITEM | PART NO. | DESCRIPTION |
| 1 | 15229005 | ROD END ASSY |
| 2 | 179839 | BOLT |
| 3 | 9018309 | PLATE |
| 4 | 9018310 | RING-RETAINER |
| 5 | 9253566 | BUSHING |
| 6 | 15015767 | PIN-BALL |
| 7 | 15228998 | ROD-END |
| 8 | 108580 | LOCKWASHER |
| 9 | 15229006 | ROD END ASSY |
| 10 | 103426 | PIN-COTTER |
| 11 | 9014408 | ROD-TIE |
| 12 | 271563 | BOLT |
| 13 | 9354243 | LOCKNUT |
| 14 | 444613 | PLUG |
| 15 | 9411019 | NIPPLE-GREASE |
| 16 | 15021796 | BELL CRANK |
| 17 | 9014414 | WASHER-THRUST |
| 18 | 15230265 | BUSHING |
| 19 | 9384855 | PIN |
| 20 | 15229654 | DISC |
| 21 | 9072942 | PIN-LOCKING |
| 22 | 9355772 | NUT |
| 23 | 223489 | BOLT |
| 24 | 15254413 | STEER ARM-LH |
| 25 | 15254412 | STEER ARM-RH |
| 26 | 9411010 | FITTING-GREASE |
| 27 | 15317485 | SEAL |
| 28 | 427667 | NUT |
| 29 | 15317486 | SEAL |
| 30 | 9016970 | NUT |

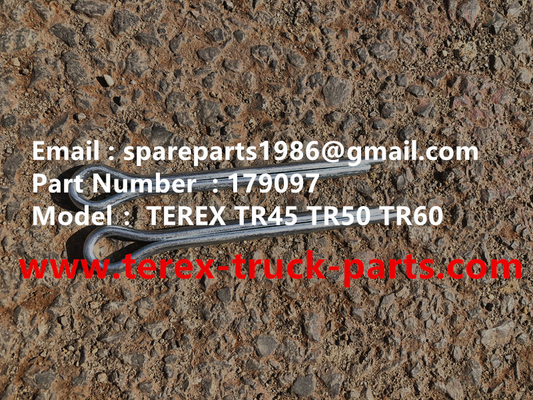

| 31 | 179097 | PIN-COTTER |
| 32 | 15250059 | PIN |
| 33 | 9060302 | PLATE |
| 34 | 179881 | BOLT |
| 35 | 103329 | LOCKWASHER |
| 36 | 9060288 | SPACER |
