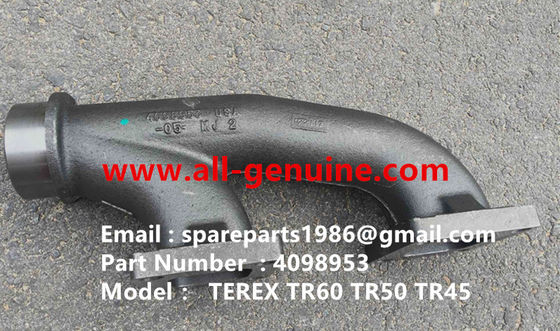

TEREX CUMMINS 4098953 EXHAUST MANIFOLD NHL RIGID DUMP TRUCK TR35 TR50 TR60 TR100 3305B 3305F 3303 3307 TR45 TR70 MT4400

Terex earthmoving equipment parts

REAR RIDE CYLINDER
NC NO. QTY PART NO. DESCRIPTION
001 09079589 REAR RIDE CYLINDER
001 001 09079587 ·ROD ASSY-PISTON
A 002 001 09167506 ·BUSHING
A 003 002 09425517 ·RING-SNAP
005 010 09068666 ·WASHER-HARDENED
A 006 002 09013688 ·VALVE-CHECK
007 002 00103877 ·PLUG
008 001 00169162 ·BALL
A 009 001 09256608 ·WIPER
A B011 001 15233757 ·SEAL RING
012 001 09015063 ·BRACKET-SEAL RING
013 004 09414567 ·BOLT
A 014 001 09015056 ·WASHER
A 015 001 09154249 ·O RING
NC NO. QTY PART NO. DESCRIPTION
A 016 001 09015057 ·WEARING RING-PISTON
017 001 09079588 ·PISTON
018 010 09068667 ·BOLT
019 001 09015066 ·CYLINDER TUBE
020 001 15040630 ·BEARING
021 002 09425517 ·RING-SNAP
A 022 001 06525035 ·VALVE ASSY
023 001 09030336 ·RING-BIG
024 001 09190141 ·RING-SMALL
025 001 09034883 ·CORE-VALVE
026 001 09035137 ·CAP
027 004 00179837 BOLT
028 001 09078692 DUST-PROOF SHIELD
029 001 09078136 MOUNTING RING
030 001 09139822 CLAMP
A NOTEOVERHAUL 9396507, INCLUDING THESE PARTS.
B NOTEUSE 15233757 RING(ONE PIECE) IN PLACE OF SEAL RING
AND WASHER, SEE REPORT B810.
