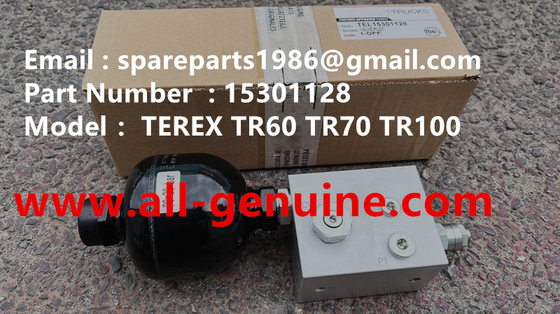

TEREX 15301128 VALVE PILOT NHL RIGID DUMP TRUCK TR35 TR50 TR60 TR100 3305B 3305F 3303 3307 TR45 TR70 MT4400

Terex earthmoving equipment parts

DRY/WET VALVE
NC NO. QTY PART NO. DESCRIPTION
001 02402041 DRY/WET VALVE
001 002 00157684 ·SCREW
002 001 02306373 ·HANDLE LOCATING DISK
003 001 09051345 ·HANDLE
004 001 09035308 ·PIN
005 001 NSSASSY ·BODY
006 001 02247608 ·O RING
007 001 02405332 ·SLIDE VALVE
008 001 02306372 ·SPRING
009 001 09052444 ·CORE
010 001 02313145 ·SPRING
011 001 02339429 ·SEAL RING
012 001 02306377 ·BLIND NUT
EMERGENCY RELAY VALVE
NC NO. QTY PART NO. DESCRIPTION
001 09018245 VALVE ASSY
001 001 09038507 ·SCREW
A 002 001 NSS ·SEAL
003 001 09039326 ·WASHER
004 004 00180081 ·BOLT
005 007 00112723 ·LOCKWAHER
006 001 02260838 ·WASHER
007 003 00180078 ·BOLT
008 001 02494717 ·COVER
A 009 001 NSS ·O RING
010 001 NOT USE ·SPRING
A 011 001 NSS ·O RING
012 001 09039338 ·PISTON
A 013 001 NSS ·SEAT
014 001 NSS ·BODY
A 015 001 NSS ·O RING
A 016 001 NSS ·SPRING
A 017 001 NSS ·CORE
A 018 001 NSS ·FILTER
11-18-38
NC NO. QTY PART NO. DESCRIPTION
AB 019 001 NSS ·O RING
A 020 001 NSS ·SPRING
021 001 09039330 ·COVER
022 001 00444625 ·PLUG
023 001 09039337 ·PISTON AND VALVE
AB 024 001 NSS ·ROD
AB 025 001 NSS ·SEAT
AB 026 001 NSS ·SPRING
AB 027 001 NSS ·O RING
028 001 09039333 ·GUIDE SEAT
AB 029 001 NSS ·O RING
030 001 09425556 ·MOUTING RING
AB 031 001 NSS ·MOUTING RING
030 001 09425556 ·MOUTING RING
A 033 001 NSS ·FLOW PORT PLATE
034 001 02405341 ·WAHSER
035 ASR 02214330 ·WASHER
036 ASR 02214331 ·WAHSER
N1 001 09376555 CONNECTOR
A NOTECONTAIN IN 09038370 SITE REPAIR KITS
B NOTECONTAIN IN 09038371 VALVE KITS
DESICCANT VALVE
NC NO. QTY PART NO. DESCRIPTION
001 15230565 DESICCANT VALVE
001 001 NSS ·BODY
002 001 NSS ·BODY
003 001 NSS ·COVER
004 001 09059613 ·OVERHAUL KITS
