Product Details:
Payment & Shipping Terms:
|
| STANDARD: | GENUINE TEREX |
|---|
Email : spareparts1986@gmail.com
Skype:nancy-1986.527
Tel / WhatsApp : 008618264966991

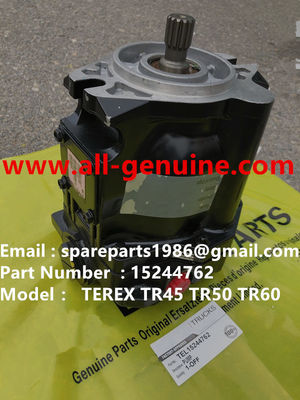

Terex earthmoving equipment parts
NC NO. QTY PART NO. DESCRIPTION
001 001 20017480 PUMP ASSY
A 002 001 20021766 ·SHAFT SEAL - FRONT
STEERING LINKAGE
NC NO. QTY PART NO. DESCRIPTION
001 001 09016976 SPINDLE ASSY-LEFT
003 002 09250759 ·BUSHING
004 001 00431715 ·VALVE
005 001 09016972 ·SPACER
006 001 09016977 SPINDLE ASSY-RIGHT
008 002 09250759 ·BUSHING
009 001 00431715 ·VALVE
010 001 09016972 ·SPACER
011 002 00103426 COTTER PIN
012 001 09253993 ARM-LEFT
013 001 09253994 ARM-RIGHT
014 012 00223489 BOLT
015 002 00427667 NUT
016 002 09253557 OIL SEAL
017 002 09253566 BUSHING
018 002 09018310 RING-RETAINER
019 002 09258621 PIN
020 002 09018309 PLATE
021
022
023
024 004 00103415 COTTER PIN
NC NO. QTY PART NO. DESCRIPTION
025
026
027 002 15237698 STEERING TIE-ROD
028
029
030
031 001 09253925 STEERING CRANK
032 002 15230267 WASHER
034 001 09411019 NIPPLE-GREASE
035 002 09253492 PAD
036 004 00179839 BOLT
037 004 00108580 LOCKWASHER
038 002 00131296 PLUG
039 002 15230266 BUSHING
040 001 09384854 PIN
041 001 09014471 PIN-LOCK
042 001 00103332 LOCKWASHER
043 001 00218197 NUT
044 002 00444613 PLUG
045 010 00179841 BOLT
A 046 002 15237869 PIN
A 046 002 09384856 PIN
| CONTROL VALVE | ||
| ITEM | PART NO. | DESCRIPTION |
| 1 | 6777974 | GASKET |
| 2 | 6835409 | PLATE-OIL TRANSFER |
| 3 | 6830003 | WASHER |
| 4 | 23018739 | BOLT |
| 5 | 9409030 | BOLT |
| 6 | 6839632 | GASKET |
| 7 | 23012877 | PLATE-SEPARATOR |
| 8 | 6839633 | GASKET |
| 9 | 103339 | WASHER |
| 10 | 9427847 | BOLT |
| 11 | 9433579 | BOLT |
| 12 | 29536510 | HARNESS ASSY |
| 13 | 12052410 | TERMINAL |
| 14 | 12059716 | CONNECTOR-BODY |
| 15 | 454813 | BOLT |
| 16 | 23019734 | SOLENOID-12V |
| 17 | 23046848 | SEAL |
| 18 | 29524652 | SCREW |
| 19 | 6779833 | GASKET |
| 20 | 6833223 | SPRING-OUTER |
| 21 | 6830243 | SPRING-INNER |
| 22 | 6880187 | BALL-CHECK |
| 23 | 29525044 | PLUG ASSY |
| 24 | 6759964 | SPRING |
| 25 | 6769825 | SPRING |
| 26 | 6778593 | SPRING |
| 27 | 6830014 | SPRING |
| 28 | 6830240 | SPRING |
| 29 | 6830237 | SPRING |
| 30 | 6779835 | GASKET |
| 31 | 103339 | WASHER |
| 32 | 9418964 | BOLT |
| 33 | 186284 | BOLT |
| 34 | 179851 | BOLT |
| 35 | 433114 | BOLT |
| 36 | 6838821 | GASKET |
| 37 | 23045751 | COVER ＆ PLATE |
| 38 | 6838904 | GASKET |
| 39 | 23019734 | SOLENOID-12V |
| 40 | 23046848 | SEAL |
| 41 | 6779852 | GASKET |
| 42 | 12059716 | CONNECTOR-BODY |
| 43 | 12052410 | TERMINAL |
| 44 | 6835526 | GASKET |
| 45 | 186290 | BOLT |
| SHIFT CONTROL | ||
| ITEM | PART NO. | DESCRIPTION |
| 1 | 15231519 | RELAY |
| 2 | 15247614 | FUSE-5AMP |
| 3 | 15247612 | FUSE-10AMP |
| 4 | 109084 | NUT |
| 5 | 179820 | NUT |
| 6 | 103320 | LOCKWASHER |
| 7 | 103340 | WASHER |
| 8 | 9251501 | BRACKET |
| 9 | 179838 | BOLT |
| 10 | 108580 | LOCK WASHER |
| 11 | 102635 | NUT |
| 12 | 179795 | BOLT |
| 13 | 103339 | WASHER |
