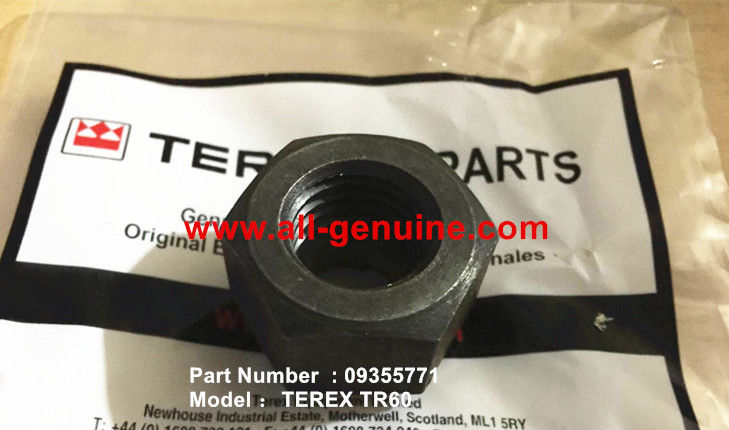

TEREX 09355771 NUT NHL DUMP TRUCK MINING QUARRY TR50 TR60 TR70

Terex earthmoving equipment parts

NC NO. QTY. PART NO. DESCRIPTION
002 15336062 FRONT SUSPENSION CYLINDER
001 002 09384086 ·END CAP
A 002 002 06525035 ·VALVE-FILLING
003 002 09013688 ·VALVE-CHECK
004 002 00444613 ·PLUG
A 005 002 15019179 ·O RING
A 006 002 09015056 ·RING-SUPPORT
007 002 15049908 ·CYLINDER TUBE-INNER
008 020 09068667 ·BOLT
009 002 09079450 ·PISTON
A 010 002 09014093 ·WEARING RING
A 011 002 09169669 ·O RING
A 012 002 09036867 ·RING-SUPPORT
013 002 09079449 ·BRACKET-SEAL RING
BA 014 002 15233756 ·SEAL RING
A 015 002 09120034 ·O RING
016 032 00186659 ·BOLT
TABLE NO
NC NO. QTY. PART NO. DESCRIPTION
018 002 09072925 ·CYLINDER TUBE
A 019 002 15255936 ·WEARING RING
A 020 002 09014235 ·SEAL RING
A 021 002 09256606 ·WIPER RING
022 002 15336055 ·ROD-PISTON
023 004 00169162 ·BALL-STEEL
A 024 002 00106671 ·FITTING-RELEASE
025 032 00274209 ·LOCKNUT
026 020 09068666 ·WASHER-HARDENED
027 ASQ 09244598 · COMPOSITE STOPPING
AGENT
028 028 09019631 WASHER
029 028 09430339 BOLT
030 002 09014267 WHEEL DISK(100 IN)
031 008 00103332 LOCKWASHER
032 008 00271613 BOLT
033 002 09017345 ANTI-SHEARING KEY
A NOTEPART IN 09396508 ARE REPAIRING UNITS.
B NOTESEE SERVICE REPORT B810.
