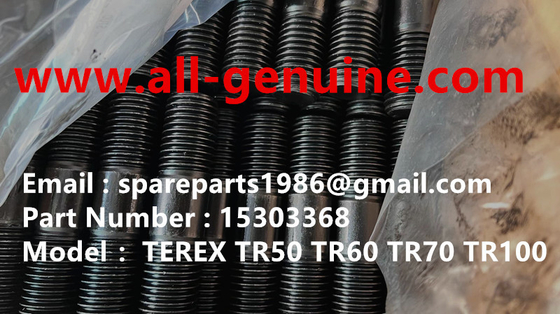

15303368 STUD TEREX RIGID DUMP TRUCK TR35 TR50 TR60 TR100 3305B 3305F 3303 3307 TR45 TR70 MT4400 CUMMINS ALLISON

Terex earthmoving equipment parts

STEERING LINKAGE
NC NO. QTY PART NO. DESCRIPTION
047 002 15237801 TERMINAL ASSY-LEFT TIE-ROD
048 005 00179839 ·BOLT
049 005 00108580 ·WASHER
050 001 15228998 ·TIE-ROD HEAD-LEFT
052 001 09018309 ·PLATE-COVER
053 001 00444571 ·PLUG
054 001 09018310 ·BAFFLE RING
055 001 09105216 ·BEARING
056 001 09372594 ·DOUBLE-SCREW BOLT
057 004 15317485 SEAL RING
058 008 00271563 BOLT
059 008 09354243 NUT
060 002 15237800 TERMINAL ASSY-RIGHT TIE-ROD
061 005 00179839 ·BOLT
062 005 00108580 ·WASHER
063 001 15228999 ·TIE-ROD HEAD-RIGHT
065 001 09018309 ·PLATE-COVER
066 001 00444571 ·PLUG
067 001 09018310 ·BAFFLE RING
068 001 09105216 ·BEARING
069 001 09372594 ·DOUBLE-SCREW BOLT
A NOTE  SERIAL NO. LOWER THAN T2281037 (DETROIT) AND
T351001 (CUMMINS) NEED TO USE 9384856 PIN, FROM ABOVE TWO
SERIAL NO. NEED TO USE 15237869 PIN.
2-2
ACCUMULATOR
NC NO. QTY PART NO. DESCRIPTION
A 001 15007340 ACCUMULATOR ASSY
001 001 15245482 ·TUBE ASSY
002 001 15021812 ·PISTON
003 002 15021811 ·SEAL
004 001 15007338 ·CAP-END
005 001 09190980 ·O RING
006 001 09220661 ·RING-BACKUP
007 001 15002608 ·SHIELD
008 001 06525035 ·RECHARGE VALVE
009 006 0022347l ·BOLT
010 001 00274253 ·O RING
011 006 15007339 ·WASHER-HARDENED
A NOTESUPER ACCUMULATOR ASSY IS 15002604
MULTIPLEX SAFETY VALVE
NC NO. QTY PART NO. DESCRIPTION
A 001 001 15247593 BODY-VALVE
002 001 15265078 ·PLUG
003 001 09038865 ·O RING
NOTE
A 15265696 VALVE SEAL UNIT.
