| UNCONTROLLLED COPY |
|
PB-60029-003 |
CONTROL GROUP MODEL17KG535B1
See On-Line Master for Current Revision |
| FIG. |
REF. |
|
|
|
| NO. |
NO. |
PART NO. |
QTY |
DESCRIPTION |
| 工 |
1 |
17KG535B1 |
1 |
CONTROLGROUP(SEE PB-60029-003) |
| 1 |
2 |
41A296327ALP2 |
3 |
CONTACTOR (SEEPB-65020-003) |
| 工 |
3 |
17FM796A1 |
14 |
POSITIVE IGBT MODULE PANEL |
| 1 |
4 |
17FM797A1 |
14 |
NEGATIVE IGBT MODULE PANEL |
| 1 |
5 |
41A296302CDP2 |
10 |
CAPACITOR,IGBT INVERTER |
| 1 |
6 |
41A296328AKP2 |
4 |
SENSOR,AC-DC CURRENT |
| 1 |
7 |
17FM702A1 |
2 |
PANEL ASSEMBLY(VAM) |
| 工 |
8 |
41A296321BSP1 |
13 |
FUSE,IGBT SWITCHASSEMBLY |
| 1 |
9 |
41B566971G1 |
5 |
SUPPRESSION MODULE |
| 工 |
10 |
41C666558G1 |
2 |
PANEL |
| 1 |
11 |
84A215344P1 |
8 |
PLUG |
| 1 |
12 |
17FL386A1 |
1 |
ICP2 PANEL |
| 1 |
13 |
41A296352CYP2 |
2 |
POWER CONVERTER,IGBT GATE DRIVER(LRU) |
| 1 |
14 |
17FM689A1 |
1 |
PANEL(SEE PB-74126-007) |
| 1 |
15 |
41C668507G1 |
1 |
AMBIENT AIR TEMPERATURE PANEL |
| 0 |
15A |
41A267497P2 |
|
TERMINAL BOARD,2 POLE |
| 0 |
15B |

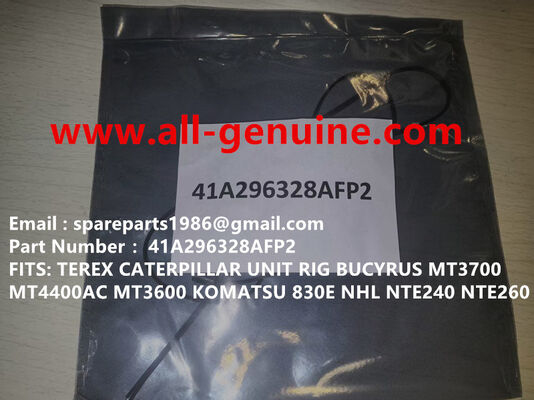

41A296328AFP2 |
|
SENSOR,THERMISTOR,100,000 OHM |
| |
16 |
17BC17E1 |
|
TERMINAL BOARD (SEE PB-77000-005) |
| 1 |
17 |
41A317303ACP1 |
|
PRESSURE SENSOR,BAROMETRIC(BPT),0-15 PSIA |
| 1 |
18 |
84B510632G1 |
|
FUSE PANEL |
| 0 |
18A |
41A296321BEP1 |
|
FUSE LIMITER,50 AMP |
| 1 |
19 |
84B516032G1 |
|
DIODE ASSEMBLY |
| 1 |
20 |
41C667531G1 |
|
CAPACITORASSEMBLY |
| 0 |
20A |
41A296302BBP1 |
|
CAPACITOR,120,000 UFD,75 VOLT |
| 0 |
20B |
41B569100G1 |
|
CLAMP,CAPACITOR |
| 0 |
20C |
41A326087G1 |
|
SUPPORT,CAPACITOR |
| 1 |
21 |
84A216441P1 |
|
SHIELD |
| 1 |
22 |
41C666570G1 |
2 |
PRINTED WIRE BOARD |
| 1 |
23 |
17LV66J46 |
2 |
RELAY (SEE PB-76012-015) |
| 1 |
24 |
41A321261G1 |
1 |
MODULE |
| 1 |
25 |
41A254891P1 |
1 |
TOGGLE SWITCH,3 AMP,250 VOLT |
| 工 |
26 |
84A220146G1 |
1 |
RESISTOR PANEL |
| 1 |
27 |
41A267741P2 |
2 |
TOGGLE SWITCH,TWO POSITION,PULLTO UNLOCK |
| 工 |
28 |
17FR402A1 |
2 |
RESISTORASSEMBLY |
| 0 |
28A |
41A296301AMP4 |
16 |
RESISTOR,375 OHM,225 WATT |
| 0 |
28B |
8815345P1 |
32 |
BUSHING,INSULATOR,11/8 IN OD |
| 0 |
28C |
41A265399P4 |
12 |
CONNECTION STRIP,23/4 INLONG |
| 1 |
29 |
N22P25010B13 |
2 |
BOLT,HEX HD,3/8 IN-16,5/8 IN LONG |
| 1 |
30 |
41A296328AKP7 |
13 |
CURRENT MODULE SENSOR,AC-DC |
| 1 |
31 |
41A278283G2 |
1 |
RESISTOR PANEL(17FR102A1) |
| 0 |
31A |
2793982G7 |
2 |
RESISTOR UNIT,1.03 OHM |
| 0 |
31B |
9963853G1 |
2 |
CONTACT CLIP ASSEMBLY |
| 1 |
32 |
17FH41A1 |
1 |
AC DRIVE POWER SUPPLY |
| |
33 |
41A259026P2 |
1 |
THYRITE(STAMPED 9RV6A7) |
| 1 |
34 |
N402P47B13 |
12 |
WASHER,5/8 IN |
| 1 |
35 |
N405P47B13 |
12 |
LOCKWASHER,5/8 IN |
| 1 |
36 |
N258P33B13 |
12 |
NUT,HEX,5/8 IN-11 |
| 1 |
37 |
41A256612P1 |
1 |
SHIELD,INSULATION,1/16 IN THK,3 HOLES |
| 1 |
38 |
41A256612P2 |
1 |
SHIELD,INSULATION,1/16 IN THK,2 HOLES |
